f you have been entrusted with setting up a sound framework for a little band that desires to contact a group of people of 300 to 500 individuals, there are different components, both vital and mechanical, to consider. Sound tech individuals have never had such an expansive scope of sound support hardware and procedures available to them. The decisions of innovation and items accessible can be overpowering, so we should discuss a portion of the choices.

Speaker Selection

Your selection of speakers should be founded on inclusion prerequisites and the size of the setting. There are a few interesting points in regards to the state of the room and how the speakers will associate with limits, like the dividers, the roof, and the floor.

You need to get the best speakers your spending plan will permit. Start by sorting out what you can manage and afterward figure out what sounds best to you inside that value range. Continuously pay attention to the speakers prior to purchasing, as not every one of them are made equivalent. While picking a speaker, you'll need to counsel the particular sheet, which ought to be promptly accessible from most respectable makers. The main specs to know are the recurrence reaction, SPL result, and scattering. On the off chance that you are utilizing latent speakers, you'll have to know the wattage and impedance (ohms opposition).

A full-range speaker with a recurrence reaction of 60 Hz to 18 kHz might be fine for some sorts of music, like nation, society, or people rock, where the kick drum and bass needn't bother with extra punch. For rock, metal, pop, hip jump, EDM, and so forth, you will need a subwoofer. A subwoofer stretches out the recurrence reaction down to 45 Hz or lower and will permit the full-range speakers extra headroom and expanded result. ;

Frequency Spectrum for Full Range Tops and Subwoofer

The sound strain level of a speaker will decide how boisterous a speaker is at a given distance (regularly 1 meter). Most spec sheets will show Peak and Continuous results. The pinnacle is the means by which uproarious the speaker is on clearly drifters, while persistent result is the normal clamor. This is a decent sign of how the speaker performs, powerfully. Sound tension levels (SPL) will weaken by 6 dB with the multiplying of the distance. In the event that a speaker were fit for 135 dB at 1m, 2m would have a SPL of 129 dB. By multiplying the distance to 4m, the speaker would yield 123 dB, etc. Another thought is that getting serious about the speakers will result in a +3 dB increment. Assuming a speaker has a pinnacle result of 135, by adding another speaker the result would increment to 138 dB.

Sound Pressure Level to Decibels Distance

Scattering is the manner in which the sound is projected on a level plane and in an upward direction from the speaker. This is amazingly valuable for deciding the situation of speakers, as you can coordinate the sound away from limits, like dividers and roofs. For example, a speaker with a 60-degree even scattering could function admirably for a thin room, while adding an extra speaker could expand the scattering to 120. The objective is to offer inclusion to the whole crowd, while coordinating the sound off the dividers. Numerous speakers are intended to couple by using a trapezoidal walled in area, versus a square or rectangular nook. The trapezoidal plan considers simple situation of the speakers, as they can be put together in very close gathering or exhibit, which takes into consideration coupling with decreased impedance between speakers.

The upward scattering will decide how high the full-range tops should be to give appropriate sound inclusion to the crowd. There are numerous ways of designing a framework, as far as tallness and regardless of whether ground-stacking, speaker stands, platform, or supporting ought to be executed as a method for getting the speaker sufficiently high to offer expanded inclusion. The higher the speaker, the farther the sound will travel. Assuming it is excessively high, there will be a deficiency of effect toward the front. Not sufficiently high might bring about the sound being awkwardly clearly for the first column.

Horizontal Dispersion Vertical Dispersion

For our motivations, I recommend setting the tops at shoulder to head level, around 5 to 6 feet from the floor. In the event that you are using subwoofers, you could attempt ground-stacking the tops on top of the subs. Numerous speakers offer shaft mounts for use with speaker stands. This is the most straightforward method for getting legitimate tallness, particularly in the event that you don't have different subs to make a ground stack. At any rate, you need your high-recurrence driver over the tops individuals in the crowd.

Ground Stack

Dynamic versus Passive

There are advantages and disadvantages to both dynamic and inactive speaker plans. Dynamic speakers are the simplest to send with worked in enhancers that are matched to the speaker parts (woofers, mid-reach, and tweeters-regularly pressure drivers). They additionally highlight hybrids, which seclude and course recurrence reaches to every part, and inherent limiters for safeguarding the drivers. A three-way dynamic speaker will have at least two underlying hybrids, which disconnect the high, mid, and low frequencies. The upside of dynamic speakers is the simplicity of arrangement and activity. They just require a line level info and you will not need to utilize separate intensifiers to drive them.

Detached speakers require intensification, speaker links, and may require a detachable hybrid and other sign handling. A few latent speakers will use an inside hybrid organization, what works similar as the dynamic speakers. Different speakers are intended to be bi-amped or tri-amped, which can be an advantage, as this permits more noteworthy command over the speaker parts, yet additionally requires a different intensifier for every part of the speaker. On the off chance that you choose to go with an inactive speaker configuration, you'll have to check out the determination sheet given by the maker to decide the right amplifier(s).

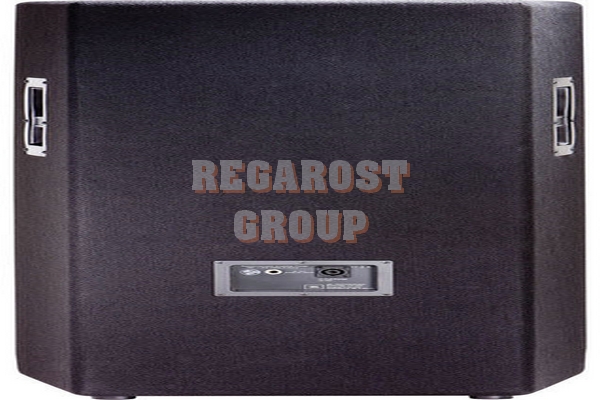

Active Speaker Passive Speaker

The information scope of a speaker is regularly given in constant, program, and pinnacle wattage estimations. You will probably see the ceaseless result and either program or pinnacle. The overall principle is a multiplying of the constant outcomes in program, while multiplying the program will give the max operation. For example, suppose we have a 4-ohm speaker that requires 600 watts of consistent result, a program result of 1,200 watts, and a pinnacle result of 2,400 watts.

The inquiry that many individuals pose, is how much power do I want? Do I truly require a 2,400-watt intensifier to drive this speaker? The response relies upon your complete required SPL yield. Checking out the speaker's particulars. We see it offers a persistent SPL yield worth of 128 dB and a pinnacle SPL result of 134 dB. Suppose you need a SPL result of 105 dB at 50' from the speaker. Recall each multiplying of the distance, brings down the SPL by 6 dB. The speaker's program yield prerequisite is 131 dB at 1m. 16 meters or 52.8 feet would offer a SPL of 107 dB, in this way you can securely utilize a 1,200W power speaker to accomplish your objective. In the event that we multiplied the program result of 1,200 watts to 2,400 watts, you would acquire 3 extra dB. My viewpoint is buy more power than expected to keep up with headroom. This, obviously, comes down to financial plan, since certain speakers might expect up to 11,000 watts top result, which would drive you into one more class of enhancement with a lot greater cost tag.

One more thought is the impedance or ohms opposition for the speaker. You should counsel the speaker particulars to decide how much power an intensifier can deliver at a given impedance. Most makers will flaunt the most elevated result the two channels at the least opposition. While matching your enhancer to your speaker, it's critical to consider the ohms rating and wattage. For example, an enhancer that is evaluated at 4,000 watts (2,000 watts for each channel) at 2 ohms will reasonably convey 1,400 watts at 4 ohms and 850 watts at 8 ohms. Our model speaker has a 4 ohm impedance, which can without much of a stretch be fueled by our 4,000-watt enhancer.

Some enhancer makers will demonstrate power draws as 1/8 power, 1/3 power, and full power. 1/8 power conveys the intensified sign beneath the underlying clasp limiters, while 1/3 power will have the clasp limiters incidentally blazing. Full power will have the limiters in steady action. While connecting with the clasp limiters, you are really adjusting the sound sign to forestall twisting, however the sign of the sound will be compromised. I like to run the intensifiers at 1/8 power, which will give a lot of headroom without making right the waveforms. You may likewise utilize a higher-appraised enhancer at 1/8 power unafraid of harming your speakers. Keep in mind, the fastest method for blowing a speaker is to underpower it.

Subwoofers likewise come in dynamic and aloof choices with similar upsides and downsides. There are various plans that can offer extraordinary outcomes. The best value for-the-money I suggest is a Yorkville ES18P. It is a self-controlled, single 18" back horn stacked plan with a huge result, equaling or outperforming generally twofold 18" plans.

Yorkville ES18P Subwoofer

Contingent upon your arrangement and the number of subs you have, you will have more predictable outcomes by setting every one of the subs together. Setting two subs together will yield a 3 dB gain in SPL and they will couple without obstruction. A sound system sub arrangement might make invalid focuses in the room where certain frequencies counterbalance one another. Different stunts to amplify bass are to put the subs close to a divider or corner, as every one of the limits will support the sound and assist with stacking the room. My cherished setup is to focus bunch four subs together (2 wide x 2 tall).

Speaker Processors

Whether or not you are utilizing dynamic speakers or uninvolved speakers with an enhancer, you ought to put resources into a speaker processor. As I would see it, it is the main piece of stuff and will save you time, cash, and cerebral pains. A speaker processor joins various processors into a rackmount signal processor. You will track down gain, EQ, deferral, hybrids, and restricting for both information and result. A

Signal Path for a Passive Sound System

You will likewise observe advanced hybrids highlighting Bessel, Butterworth, and Linkwitz-Riley band-pass channels. Every hybrid offers a high-recurrence and low-recurrence setting with selectable channel types. For tops, I normally set the HPF to 96 Hz on a 24 dB for each octave Linkwitz-Riley channel and the LPF to off. For subs, I set the LPF to 96 Hz on a 24 dB for each octave Link-Riley channel and the HPF to 30 Hz on a 48 dB Butterworth channel. The significant center is the hybrid between the LPF of the sub and the HPF of the top. A 24-dB-per-octave Link-Riley channel keeps the recurrence reaction level where both the subwoofer and top are getting over.

Note: A speaker processor delay is anything but an advanced defer impact, as it is planned to in a real sense postpone a sign by a limited sum and doesn't offer a "wet/dry" setting. Assuming that a producer offers time defer settings for your speakers, you can utilize those to time adjust the tops and subs. The LS-801P has a 3 ms delay, so changing the tops to match the inborn deferral of the subs will give a lucid and stage precise wave front. In the event that you don't have the specs, you can put resources into an estimation framework like SMAART. Assuming you have an iPhone or iPad, you can buy the AudioTools application by Studio Six Digital, which can help you measure and align your sound framework.

Simple Mixers versus Digital Mixers

Simple blenders are the pillar of any sound framework, and reach in cost and elements. There are some fanatic simple aficionados who won't move to an advanced blending board, as they accept the simple parts sound better than computerized. Assuming you are blending a live band, you will need a few extra sign processors to shape each instrument. Most simple blending control center will offer an inherent four band parametric EQ, which helps balance the apparent sound and cuts out space for each instrument in the blend. It is uncommon to track down simple control center with worked in elements accessible on each channel. Consequently, an all-simple arrangement will require a few racks of stuff to oblige the extra sign handling, like pressure and doors for each channel.

Analog Mixer Digital Mixer

One more angle to consider is the utilization of wedge screens or stage screens. These are speakers that are ordinarily on the floor and calculated up toward the entertainers, offering a committed blend, which permits the artists to hear themselves in front of an audience. Criticism can turn into an issue, so the utilization of realistic EQs will be expected to eliminate the frequencies that are taking care of back. Include extra sign processors like multi-impacts, delays, and reverbs and you can see the simple arrangement might sound better, however will cost more cash with the extra sign handling, in addition to there are extra racks, cabling, investigating, and support included.

Computerized blenders have made a few significant advances as of late with respect to the nature of the sound, and evaluating that is tantamount to many modestly estimated simple control center. Advanced blenders offer the best answer for any visiting band, with an enormous channel count and each channel pressing four-band EQ, pressure, and gating. Furthermore, each result highlights realistic EQ for ringing out screens. Numerous blenders include inward impacts with up to eight addition spaces for use with inner sends. You can in any case utilize your beloved detachable stuff, yet the advanced stage decreases how much stuff significantly. One more advantage of the advanced blender is the remote control choices. Numerous blenders offer iOS and Android control applications.

BEHRINGER X32 Digital Mixing Console IOS APP

Assuming the FOH position is in a not exactly helpful spot, the specialist can move about the space to make informed changes in view of the crowd's viewpoint. This likewise permits the specialist to change screens from the stage, while remaining close to the performers. Numerous blender stages will permit different gadget arrangements in which musicians might change their own blend progressively, permitting the FOH designer to zero in on the primary blend. Different elements currently fused in the advanced stage incorporate unearthly investigation and a constant analyzer (RTA) for making acclimations to screens or to the whole blend. Be that as it may, I actually suggest a devoted speaker processor for tuning the sound framework.

Stage Snakes and Stage Boxes

A phase box or multi-channel snake is profoundly advantageous for decreasing mess on the stage. Some bigger stage arrangements utilize a splitter that parts the sign from every one of the sound sources in front of an audience among FOH and screens. Most mid-level groups regularly don't have a devoted screen engineer, so the FOH architect will perform both fundamental blending and screen obligations. With a simple arrangement, you'd be working with a 16-to 24-station sound snake with a link run of 100+ feet. A drum unit might have 8 to 12 amplifiers set up to catch the sound, so a committed sub-snake takes into account more limited mic-link runs and a much cleaner stage arrangement.

-

Using stage sub-snakes prior to going to the primary stage snake will downplay the link mess in front of an audience. Numerous computerized blenders offer advanced stage boxes that capacity like a simple stage snake, just rather than a 16-to 24-pair multi-station link, the computerized snake will utilize a solitary CAT5 link to associate with the blender in the FOH position. This chops down impressively on the weight and arrangement season of the whole framework.

Stage Sub-Snakes

Receivers

For performers to be heard, receivers are utilized to catch vocals, guitar enhancers, and drums. The backbone of unrecorded music is the utilization of dynamic mouthpieces. There are numerous mouthpiece makers, yet the top choice of most clubs is as yet the Shure SM58 for vocals and SM57 for instruments. They have demonstrated their worth over the long haul by sounding great and being unbelievably rough. They can in a real sense get hammered yet work. On the off chance that there is the financial plan and craving for remote receivers, I enthusiastically suggest the Shure GLXD or QLXD series advanced mouthpieces. The GLXD is a reasonable choice with a perfect, clear sound with next to no antiquities, a straightforward arrangement, and an implicit charger in the recipient.

Digital Snake

In-Ear Monitors

Many groups like to do without the utilization of stage screens and pick in-ear-screens (IEM). I've utilized the section level PSM300 Shure Personal Monitoring System for quite a long time and have had amazing outcomes. With an advanced blender, the arrangement and activity is significantly less complex, bringing about extremely cheerful artists who can set their own screen blend and without unnecessary stage volume.

Shure GLX-D Series Digital Microphone

In Conclusion

As may be obvious, there are numerous headings one can pick while setting up a sound framework for your band or occasion: simple blenders versus computerized blenders; detached speakers and subs versus dynamic plans. Each has its upsides and downsides. The main thing is to utilize your ears while simply deciding. Continuously pay attention to speakers prior to buying and, if conceivable, demo speakers and subs together, particularly on the off chance that you are utilizing various brands. I can't suggest sufficient the significance of having a committed speaker processor for any framework, paying little heed to estimate or spending plan.
